DJI AGRAS T40
The Future of Crop Spraying, Spreading & Mapping
Increase yield, user safety, and overall spraying and spreading efficiency with the AGRAS T40 drone.
Great fit for:
- Precise in-field spot coverage
- Whole field application
- Granular fertilizer application
- Cover crop seeding
Increased Efficiency:
- Whole field - Up to 40 acres per hour at 2 GPA
- Up to 1.0 tons of granular product per hour
- Adjust droplet size with the push of a button
- Operate continuously with 3 batteries and a generator on-site
How to Start Flying Your DJI AGRAS T40
Step 1
Get a Quote
Click on "Get A Quote Today" below and we'll send you a same-day, custom quote according to your needs.
Step 2
Get an Invoice
After we receive your payment we'll ship the drone anywhere in the US for free.
Step 3
Get Legal
We'll help you get all the required licenses from the FAA and from your State Pesticide Department.
Step 4
Get Trained
After getting all your licenses and getting trained by us you're ready to start flying.
Drone For the Agriculture Industry
The AGRAS T40 drone is designed for minimal maintenance all while ensuring maximum yield.
INTELLIGENT BATTERIES
New batteries have a convenient button with an LED indicator telling the operator the current charge state of the battery.
ROTARY NOZZLES
Two rotary nozzles ensure droplets are more uniform in size all while reducing drift and increasing swath width.
LOW MAINTENANCE
Designed for minimum maintenance. Any gear can be easily repaired at a customers convenience.
COLLISION PREVENTION
Binocular vision sensor system provides 360-degree horizontal omnidirectional obstacle sensing.
MOBILE-FRIENDLY SOFTWARE
DJI's mobile-friendly app allows for easy tracking of sprayed and spread area.
FOLDABLE DESIGN
Its foldable design decreases volume by up to 70%, fitting on the back of any standard truck and making it easy to transport.
T50 vs T40
T50
- 10.5 gallon spray tank
- 19.8 gallon spreader tank (110lbs max load)
- Improved terrain following
- 36 ft Swath (spray width)
- 12-megapixel adjustable camera
- Up to 4 centrifugal nozzles
- Max flow of 6.34 gal/min
- IPX6 water and dust resistance
- 7-inch screen remote control
- Mapping capabilities: Built in
- Operates continuously with 3 batteries, 1 charger and a generator on site
T40
- 10.5 gallon spray tank
- 18.5 gallon spreader tank (110lbs max load)
- Standard terrain following
- 36 ft Swath (spray width)
- 12-megapixel adjustable camera
- 2 centrifugal nozzles
- IPX6 water and dust resistance
- 7-inch screen remote control
- Mapping capabilities: Built in
- Operates continuously with 3 batteries, 1 charger and a generator on site
Mapping, Spraying and Spreading, All In One
The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.
AGRAS T40 Specs
OPERATIONAL EFFICIENCY
-
Up to 40 acres/hour at 2 GPA
-
Mapping, spraying and spreading functions all-in-one
-
12mp camera and adjustable gimbal enable easy capture of images
-

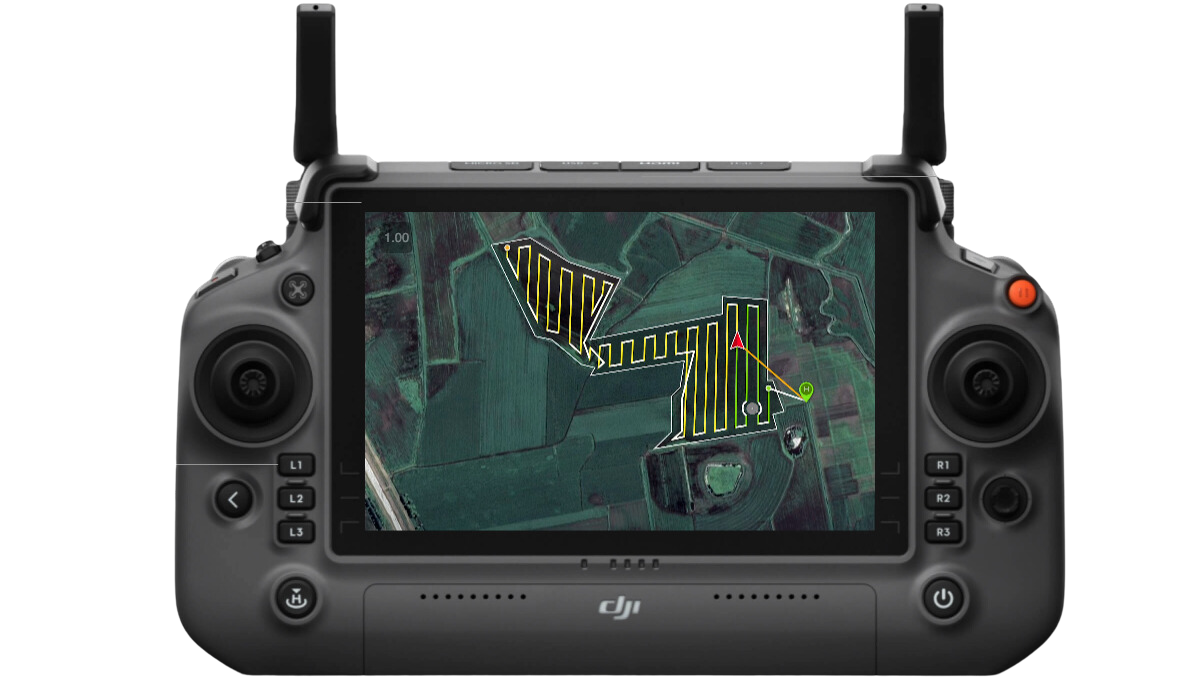

7" RC display allows faster and smoother mapping
-
Ability to operate continuously with 3 batteries, 1 charger and a generator on site
SPRAY SYSTEM
-
10.5-gallon liquid tank designed to empty in under 4 minutes
-
36-foot swath width with pattern consistency
-
Reliable rotary pumps
-
Two rotary style nozzles spray through centrifugal force rather than pressure, making adjust droplet size as easy as clicking a button
-
Live level meter plus onboard scales provide volume of liquid remaining as well as estimated time remaining in the field
SAFETY & EASY OF USE
-
Mission planning is fast, smooth and customizable
-
Equipped with 360-degree horizontal omnidirectional obstacle sensing, detecting objects up to 150ft away
-
Foldable design reduces aircraft volume by 70% enabling great portability
-
7" RC display allows faster and smoother mapping
-
Rated IPX6 water and dust resistance throughout the entire aircraft
SPREADING SYSTEM
-
18-gallon granular tank designed to hold 110lbs of granular material
-
Redesigned spreader cover and frame to create minimal pattern disturbance
-
Equipped with a dump valve and ability to fill using a seed tender spout
The AGRAS T40 Flagship Package
- Fully assembled DJI AGRAS T40 Drone w/ Remote Control and Liquid Tank
- 3x AGRAS T40 Intelligent Flight Battery
- C8000W Intelligent Charger
- DJI AGRAS T40 Spreading System
- 2x Extra AGRAS T40 Remote Batteries
- DJI AGRAS T40 Remote Battery charger
- DJI AGRAS T40 Remote Battery Charger Hub
- Westinghouse WGen14500c Generator
- DJI Extension Cord Kit
- DJI AGRAS T40 Full-set of Propellers
Frequently Asked Questions
How many acres can it spray in an hour?
The DJI AGRAS T40 can spray up to 40 acres/hr at a 2 gallons per acre application rate. Additional flight parameters: Speed: 23ft/s; Height: 10ft; Payload: 10.5 gallons; Swath Width: 32ft;
What about dry spreading?
The DJI AGRAS T40 can spread up to 40 acres/hr at a 14 pound per acre application rate. Additional flight parameters: Speed: 23ft/s; Height: 10ft; Payload: 18 gallons/110lbs; Swath Width: 23ft approximately;
How many refills are necessary per hour?
At an application rate of 2 gallons per acre, you can expect 6-8 refills per hour. Similar for dry spreading at 14 pounds per acre.
What kind of generator do I need to get started?
Any 10,000 running watt generator should be enough to get started with 50 amp plugs. Our recommendation is the Westinghouse WGEN14500 14.5kW.
What kind of licenses do I need to spray legally?
You'll need:
- FAA Part 107 - Drone Pilot's License
- FAA Part 137 - Aerial Applicator's License
- Section 44807 Exemption - Exemption to operate drones over 55lbs.
- State Applicator's License (may use the same one you may already have)
- FAA 3rd Class Medical (for night flying)
- Insurance
AckerSpray's compliance manager can help you obtain all of these licenses with our Done-For-Your UAV Compliance Services.
Is there a training class?
Better than that! We offer comprehensive, hands-on operations training, designed to get you comfortable and confident flying the drone in a full-day of instruction. Our trainers will travel to you, anywhere in the US.
What comes with the package?
The package comes with everything you need to get started (please, see the package items above). We have options with and without a Westinghouse 14.5kW Generator.
How much does the package cost?
Our Ready-to-Fly Packages start at just under $30,000 and go all the way up to $38,000. Request a quote below and we'll customize it for your specific needs.
